Bundle Daemon

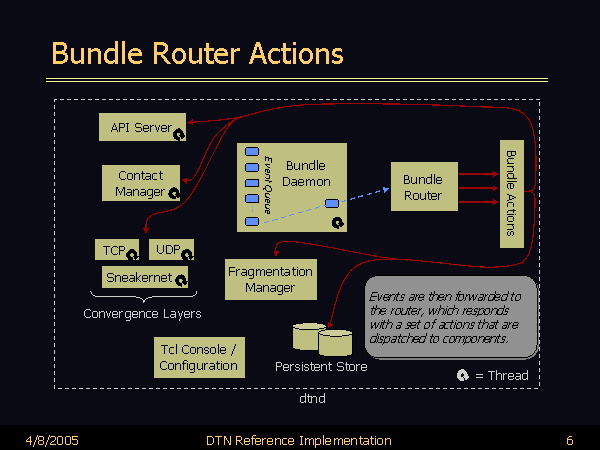

Bundle Router Actions
API Server
UDP
Bundle Actions
Bundle Router
Contact Manager
Event Queue
TCP
Sneakernet
Convergence Layers
Tcl Console / Configuration
= Thread
dtnd
Fragmentation Manager
Events are then forwarded to
the router, which responds
with a set of actions that are
dispatched to components.
