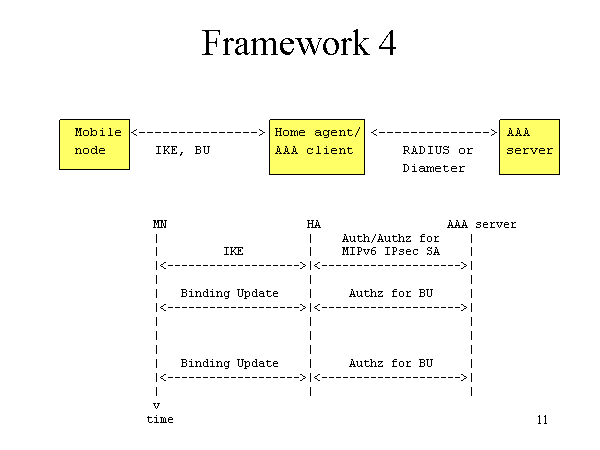

Framework 4 Mobile <---------------> Home agent/ <--------------> AAA node IKE, BU AAA client RADIUS or server Diameter MN HA AAA server | | Auth/Authz for | | IKE | MIPv6 IPsec SA | |<------------------->|<-------------------->| | | | | Binding Update | Authz for BU | |<------------------->|<-------------------->| | | | | | | | | | | Binding Update | Authz for BU | |<------------------->|<-------------------->| | | | v time |
