QNEs read & interpret QSPEC parameters to best achieve using QOSM within its domain
local QSPEC generated at RMD-QNI & XG-QNI
procedures described in Section 4.5 of [QoS-NSLP
e.g., RMD-QNI interprets parameters in Initiator QSPEC to determine needed parameter
local QSPEC pushed on top of Initiator QSPEC within the RMD & XG domains, becomes current QSPEC
local QSPEC popped at egress edge of the RMD & XG domains
QNR processes RESERVE request
flow established

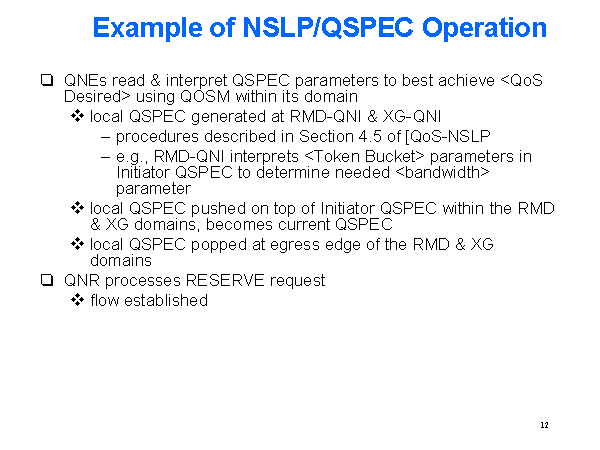

Example of NSLP/QSPEC Operation
