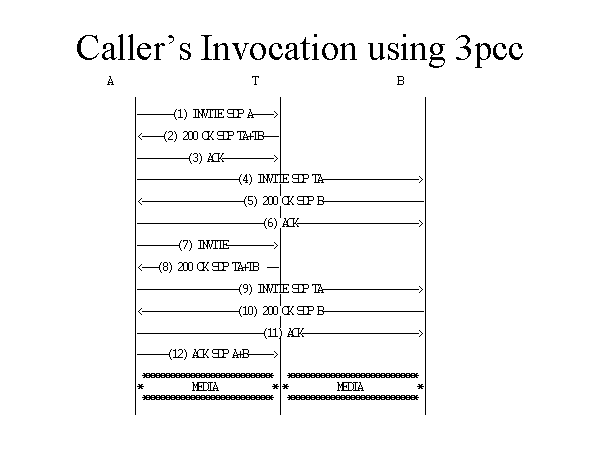

Caller’s Invocation using 3pcc A T B | | | |-------(1) INVITE SDP A---->| | | | | |<----(2) 200 OK SDP TA+TB---| | | | | |----------(3) ACK---------->| | | | | |--------------------(4) INVITE SDP TA------------------->| | | | |<--------------------(5) 200 OK SDP B--------------------| | | | |-------------------------(6) ACK------------------------>| | | | |--------(7) INVITE--------->| | | | | |<---(8) 200 OK SDP TA+TB --| | | | | |--------------------(9) INVITE SDP TA------------------->| | | | |<-------------------(10) 200 OK SDP B--------------------| | | | |-------------------------(11) ACK----------------------->| | | | |------(12) ACK SDP A+B----->| | | | | | ************************** | ************************** | |* MEDIA *|* MEDIA *| | ************************** | ************************** | | | | |
