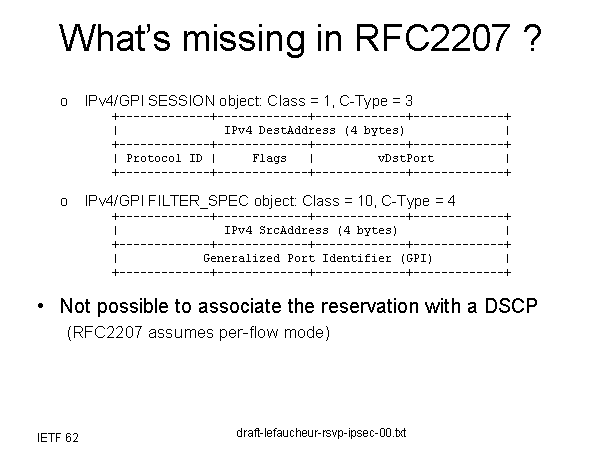

What’s missing in RFC2207 ? Not possible to associate the reservation with a DSCP (RFC2207 assumes per-flow mode) o IPv4/GPI SESSION object: Class = 1, C-Type = 3 +-------------+-------------+-------------+-------------+ | IPv4 DestAddress (4 bytes) | +-------------+-------------+-------------+-------------+ | Protocol ID | Flags | vDstPort | +-------------+-------------+-------------+-------------+ o IPv4/GPI FILTER_SPEC object: Class = 10, C-Type = 4 +-------------+-------------+-------------+-------------+ | IPv4 SrcAddress (4 bytes) | +-------------+-------------+-------------+-------------+ | Generalized Port Identifier (GPI) | +-------------+-------------+-------------+-------------+ |
