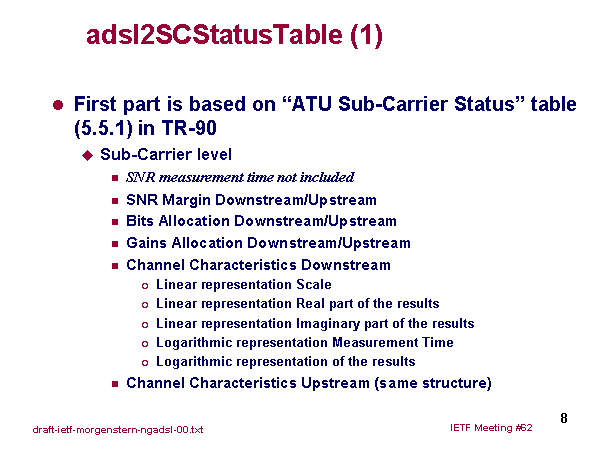

adsl2SCStatusTable (1) First part is based on “ATU Sub-Carrier Status” table (5.5.1) in TR-90 Sub-Carrier level SNR measurement time not included SNR Margin Downstream/Upstream Bits Allocation Downstream/Upstream Gains Allocation Downstream/Upstream Channel Characteristics Downstream Linear representation Scale Linear representation Real part of the results Linear representation Imaginary part of the results Logarithmic representation Measurement Time Logarithmic representation of the results Channel Characteristics Upstream (same structure) |
