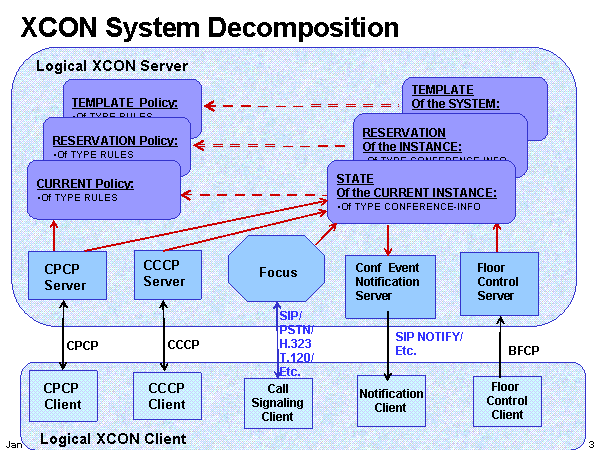

XCON System Decomposition Logical XCON Server Floor Control Client TEMPLATE Of the SYSTEM: Pre-configured Initial/Default values Conf Event Notification Server Focus CPCP Client CCCP Client CPCP Server CCCP Server Call Signaling Client TEMPLATE Policy: Of TYPE RULES RESERVATION Policy: Of TYPE RULES CURRENT Policy: Of TYPE RULES RESERVATION Of the INSTANCE: Of TYPE CONFERENCE-INFO STATE Of the CURRENT INSTANCE: Of TYPE CONFERENCE-INFO Notification Client Floor Control Server SIP/ PSTN/ H.323 T.120/ Etc. CCCP CPCP SIP NOTIFY/ Etc. BFCP Logical XCON Client |
