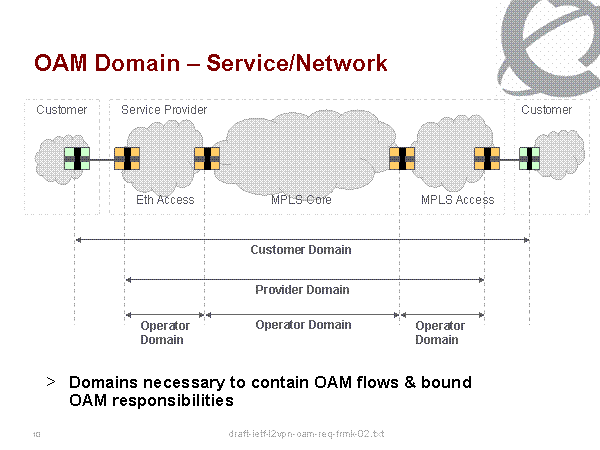

OAM Domain – Service/Network Eth Access MPLS Core MPLS Access Customer Customer Service Provider Customer Domain Provider Domain Operator Domain Operator Domain Operator Domain Domains necessary to contain OAM flows & bound OAM responsibilities |
