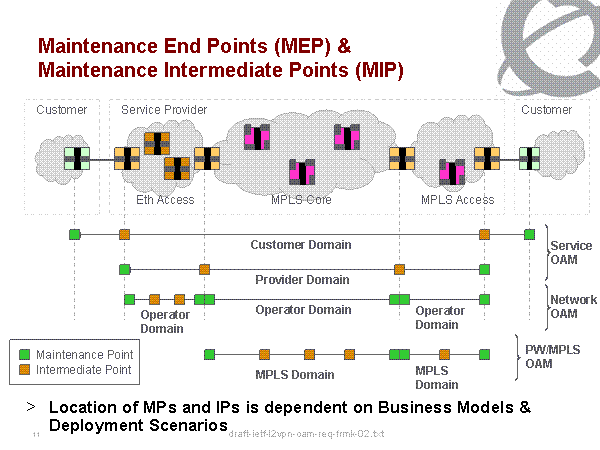

Maintenance End Points (MEP) & Maintenance Intermediate Points (MIP) Customer Domain Provider Domain Operator Domain Operator Domain Operator Domain Eth Access MPLS Core MPLS Access Customer Customer Service Provider MPLS Domain MPLS Domain Location of MPs and IPs is dependent on Business Models & Deployment Scenarios Network OAM Service OAM PW/MPLS OAM |
