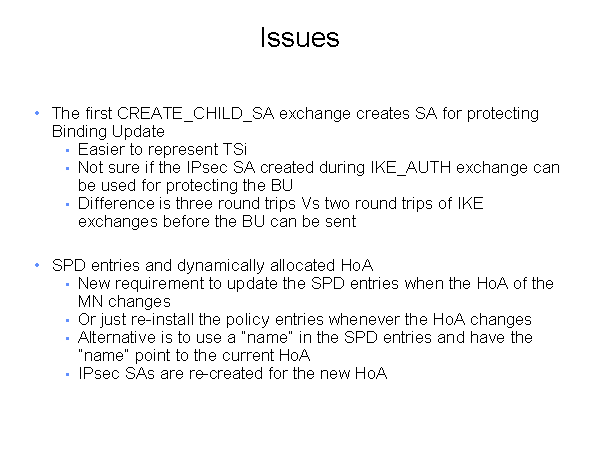

Issues

The first CREATE_CHILD_SA exchange creates SA for protecting Binding Update
Easier to represent TSi
Not sure if the IPsec SA created during IKE_AUTH exchange can be used for protecting the BU
Difference is three round trips Vs two round trips of IKE exchanges before the BU can be sent

SPD entries and dynamically allocated HoA
New requirement to update the SPD entries when the HoA of the MN changes
Or just re-install the policy entries whenever the HoA changes
Alternative is to use a “name” in the SPD entries and have the “name” point to the current HoA
IPsec SAs are re-created for the new HoA
