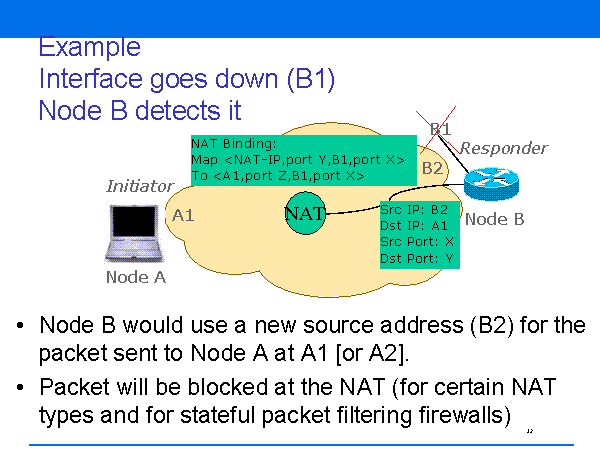

Example Interface goes down (B1) Node B detects it Node A Node B Node B would use a new source address (B2) for the packet sent to Node A at A1 [or A2]. Packet will be blocked at the NAT (for certain NAT types and for stateful packet filtering firewalls) Initiator Responder Src IP: B2 Dst IP: A1 Src Port: X Dst Port: Y B2 A1 B1 NAT Binding: Map To NAT |
