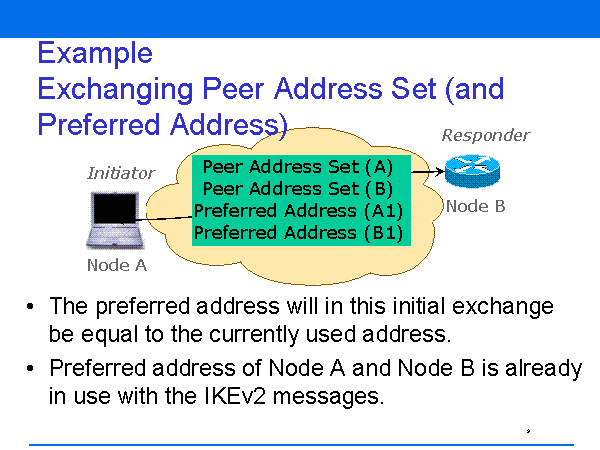

Example Exchanging Peer Address Set (and Preferred Address) Node A Node B The preferred address will in this initial exchange be equal to the currently used address. Preferred address of Node A and Node B is already in use with the IKEv2 messages. Initiator Responder Peer Address Set (A) Peer Address Set (B) Preferred Address (A1) Preferred Address (B1) |
