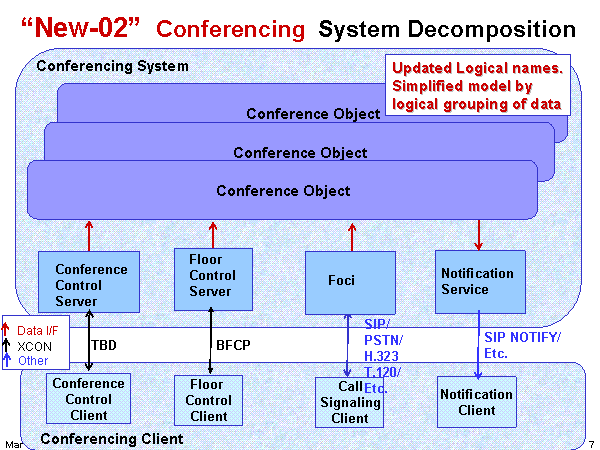

“New-02” Conferencing System Decomposition Conferencing System Floor Control Client Notification Service Conference Control Client Conference Control Server Call Signaling Client Notification Client Floor Control Server SIP/ PSTN/ H.323 T.120/ Etc. TBD SIP NOTIFY/ Etc. Conferencing Client Conference Object Conference Object Conference Object Updated Logical names. Simplified model by logical grouping of data BFCP XCON Other |
